TrolMaster | Hydro-X Sensors

TrolMaster Hydro-X Environmental Control System: Sensors

The (MBS-PRO) 4-in-1 sensor combines a precision air temperature, humidity, CO2 (PPM) sensor and photocell to create the perfect all-in-one environmental sensor. It is designed for both Hydro-X Pro and Hydro-X Plus systems. Assembled using a new water-resistant plastic injected enclosure, the MBS-PRO can be placed in multiple locations throughout the growing area to provide spot measurements from multiple sensors (Up to 50 sensors can be connected to the Hydro-X Pro) The sensors can then be used together (averaged) or separately in order to control a specific section of the grow area by assigning a sensor to a specific control device. The MBS-PRO features a built-in LCD display to show the current conditions of that sensor which provide the ease of onsite monitoring. It also features a new “push-lock” connection to make installation easy. Please Note: The MBS-Pro requires the SPH-1 for supplemental power.

The optional Smoke Detector (MBS-SD) can alert the user to smoke within their growing area at ALL TIMES. Up to 5 smoke detectors can be connected to a single Hydro-x controller. If ANY of the smoke detectors determine there is smoke in the area, the user will receive a user-alert on their phone to alert them to the potential problem BEFORE the problem gets out of hand.

The optional CO2 Sensor (MBS-S8) measures the CO2 PPM within the growing area. Using the MBS-S8 allows the users to connect and control their supplemental CO2 system using the Hydro-X. *Used in combination with one or more DSC-1 CO2 device modules.

The (MBS-TH) is a 3-in-1 Temp/Humid/Light sensor for the Hydro-X system. Note: This is a replacement or spare part. The main controller comes with a sensor already.

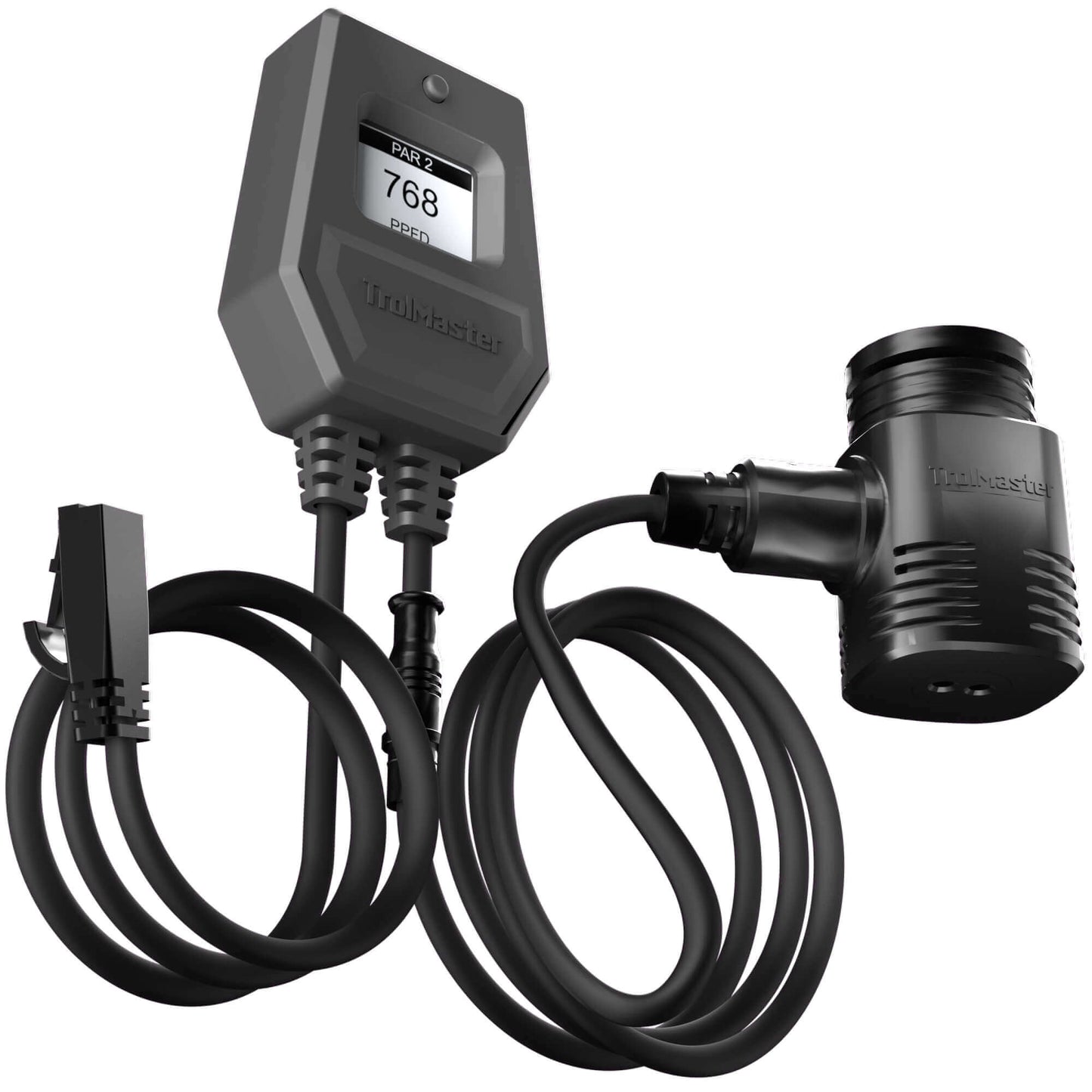

The Full Spectrum Quantum Sensor (MBS-PAR) provides accurate and cost-effective measurement of photosynthetically active radiation (PAR) from all light sources used to grow plants. The full-spectrum quantum sensor has a spectral range of 389 to 692 nm ± 5 nm. The improved spectral response increases the accuracy of LED measurements. Used in conjunction with the Hydro-X controller, the PPFD sensor will AUTOMATICALLY increase or decrease the output level of your supplemental lighting systems to continuously maintain the exact lighting level (in PPFD) that the user selects.

"Sensors should remain dry and clean to prevent premature failure. Do not spray foreign substances or allow water / condensate on the sensors"
