TrolMaster Aqua-X Irrigation Control System:  Water Monitoring

The AMP-2 module connects the Aqua-x to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-x, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum “limits” can be set on the Aqua-x providing 24/7 notification of pH / EC or temperatures that are out of limits.

Reservoir pH Sensor（PPH-1）The TrolMaster pH probes provide accurate and reliable monitoring on the pH of the water being monitored by the Aqua-x. The PPH-1 probe connects to the Aqua-x via the AMP-2.

Reservoir EC/Temp Sensor（PCT-1）The TrolMaster EC & Temperature probes provide accurate and reliable monitoring on the EC and temperature of the water being monitored by the Aqua-x. The PCT-1 probe connects to the Aqua-x via the AMP-2.

Heavy-Duty Intank pH Sensor （PPH-2）The TrolMaster pH probes provide accurate and reliable monitoring on the pH of the water being monitored by the Aqua-x. The PPH-2 probe is a commercially rated probe and it connects to the Aqua-x via the AMP-2. It is intended to be placed into a water tank.

Heavy-Duty Intank EC/Temp Sensor （PCT-2）The TrolMaster EC & Temperature probes provide accurate and reliable monitoring on the EC and temperature of the water being monitored by the Aqua-x. The PCT-2 probe is a commercially rated probe and it connects to the Aqua-x via the AMP-2. It is intended to be placed into a water tank.

The AMP-3 Sensor Board can be used as a bridge between the sensors (pH Sensor & EC/Temp Sensor) and the Aqua-X Pro/Tent-X Controller. It is specially designed for the Aqua-X and Tent-X system. It can be connected to the main controller with a standard RJ12 cable. Multiple units can be connected into one system for multiple monitoring applications. The pH level, EC level and water temperature will be displayed on its LCD screen and the master controller screen.

TrolMaster's new PCT-3 EC & temperature probe has been improved in several ways. The new PCT-3 features a reduced diameter protective sleeve and threaded body that will allow the probe to be installed into standard 3/4" PVC tee fittings. The PCT-3 also has an improved sensor element for more stable and reliable performance and we have reduced the length of the probe to fit into tight spaces. Can be used with the AMP-2 or the AMP-3 nutrient sensor module.

TrolMaster's new PPH-3 pH probe has been improved in multiple ways. The new PPH-3 features a reduced diameter protective sleeve and threaded body that will allow the probe to be installed into standard 3/4" PVC tee fittings. The PPH-3 has an improved sensor element for more stable and reliable performance. Can be used with the AMP-2 or the AMP-3 nutrient sensor module.

The DFM-1 is a 1" digital inline flow meter provides accurate measurements of water or a nutrient solution flowing through a fluid pipe. It is specially designed for the Aqua-X Pro system. When it’s used with the Aqua-X Pro, users can set the irrigation schedule to be controlled “By volume”, and the DFM-1 will measure and allow the desired and precise amount of nutrient solution to be used. The DFM-1 sensor can also be used for future functions and may include the ability to sense water leaks and / or line blockages.  *Need to be powered by SPH-1

The DFM-2 is a 1.25" digital inline flow meter provides accurate measurements of water or a nutrient solution flowing through a fluid pipe. It is specially designed for the Aqua-X Pro system. When it’s used with the Aqua-X Pro, users can set the irrigation schedule to be controlled “By volume”, and the DFM-2 will measure and allow the desired and precise amount of nutrient solution to be used. The DFM-2 sensor can also be used for future functions and may include the ability to sense water leaks and / or line blockages.

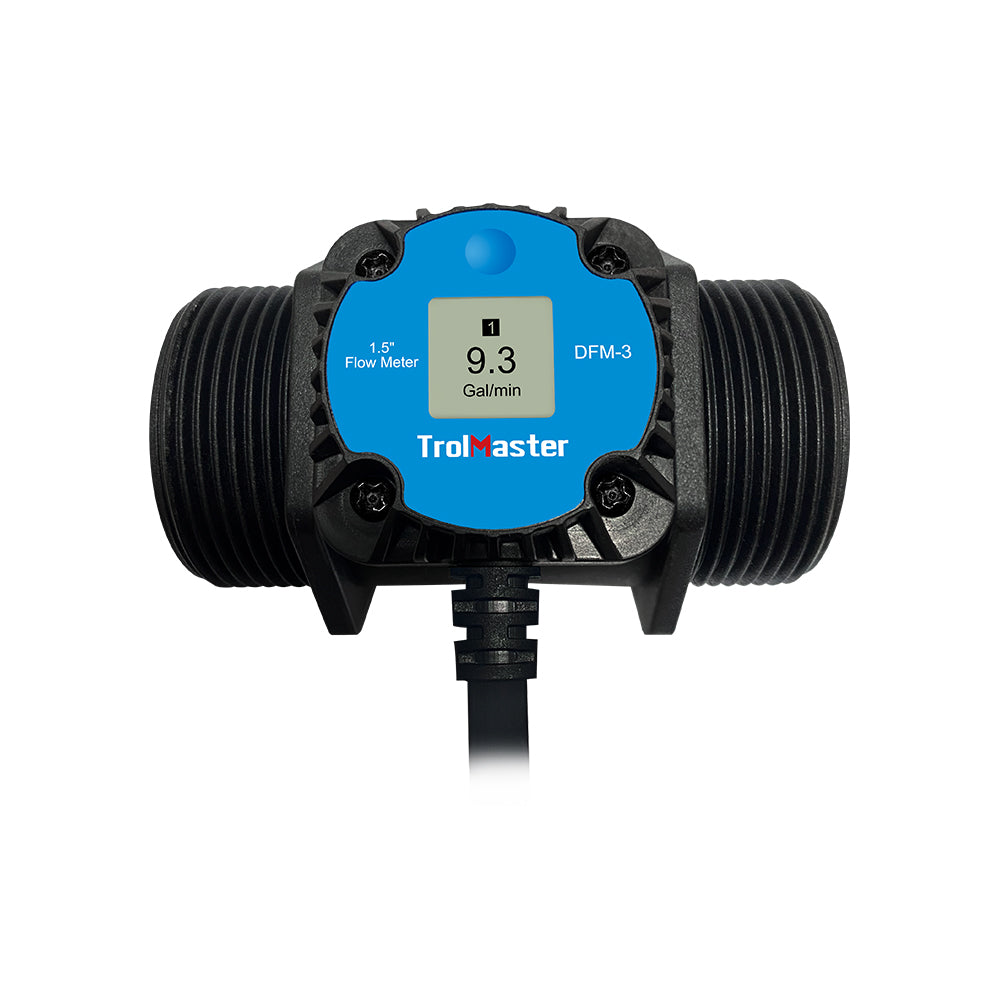

The DFM-3 is a 1.5" digital inline flow meter that provides accurate measurements of water or a nutrient solution flowing through a fluid pipe. It is specially designed for the Aqua-X Pro system. When it’s used with the Aqua-X Pro, users can set the irrigation schedule to be controlled “By volume”, and the DFM-3 will measure and allow the desired and precise amount of nutrient solution to be used. The DFM-3 sensor can also be used for future functions and may include the ability to sense water leaks and / or line blockages.
