TrolMaster | Aqua-X 24V Controls

TrolMaster Aqua-X Irrigation Control System: 24V Controls

The (OA6-24) control board is designed to control multiple 24vac solenoid valves. It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

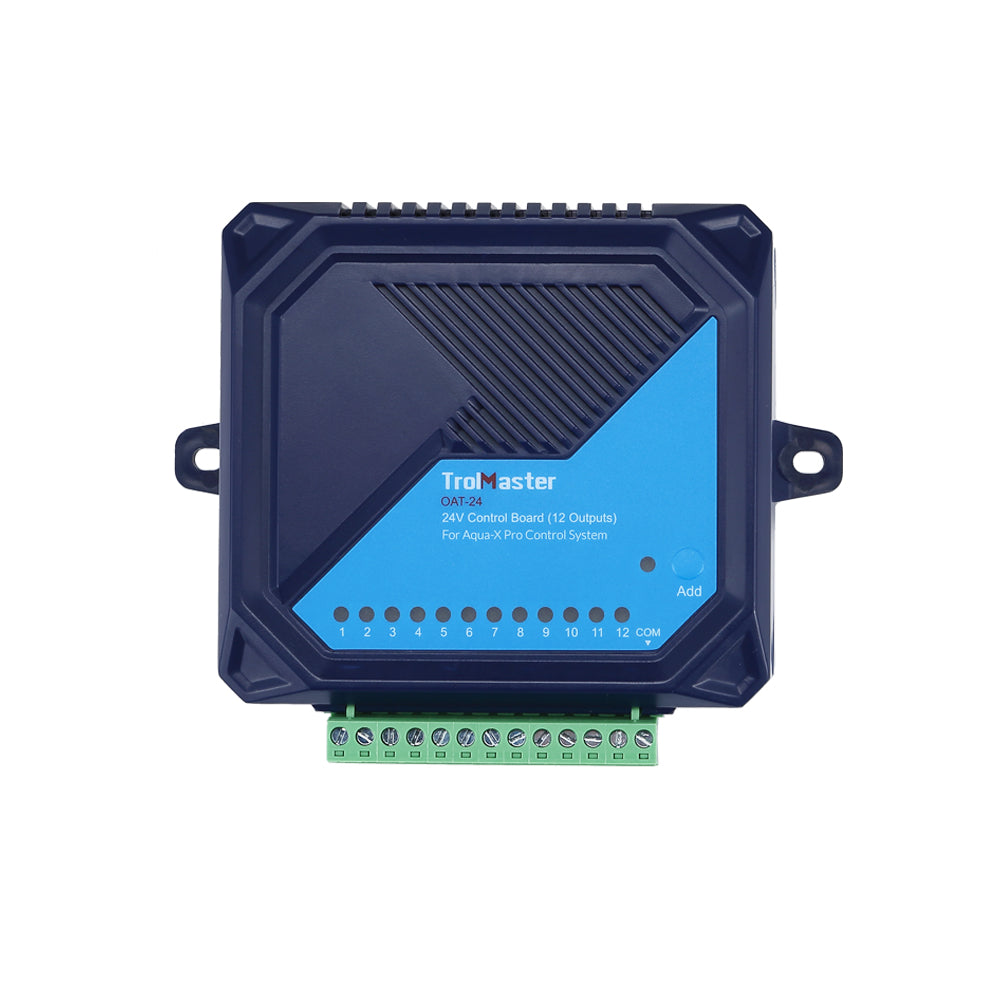

The (OAT-24) module is specifically designed for the Aqua-X Pro Irrigation Control System. It features 12 individual 24V outputs that can control up to 12 individual 24-volt irrigation solenoids. By using multiple OAT-24 modules, the Aqua-X Pro Irrigation Control System can manage up to 600 individually controlled 24 valves. Each of the solenoid valves can be independently configured by the users with one of the five control modes. Feed by: Recycle, Schedule, Demand, Volume, or Auto-fill. The OAT-24 gives users the ability to easily manage irrigation schedules for multiple nutrients, rooms, and irrigation zones.
