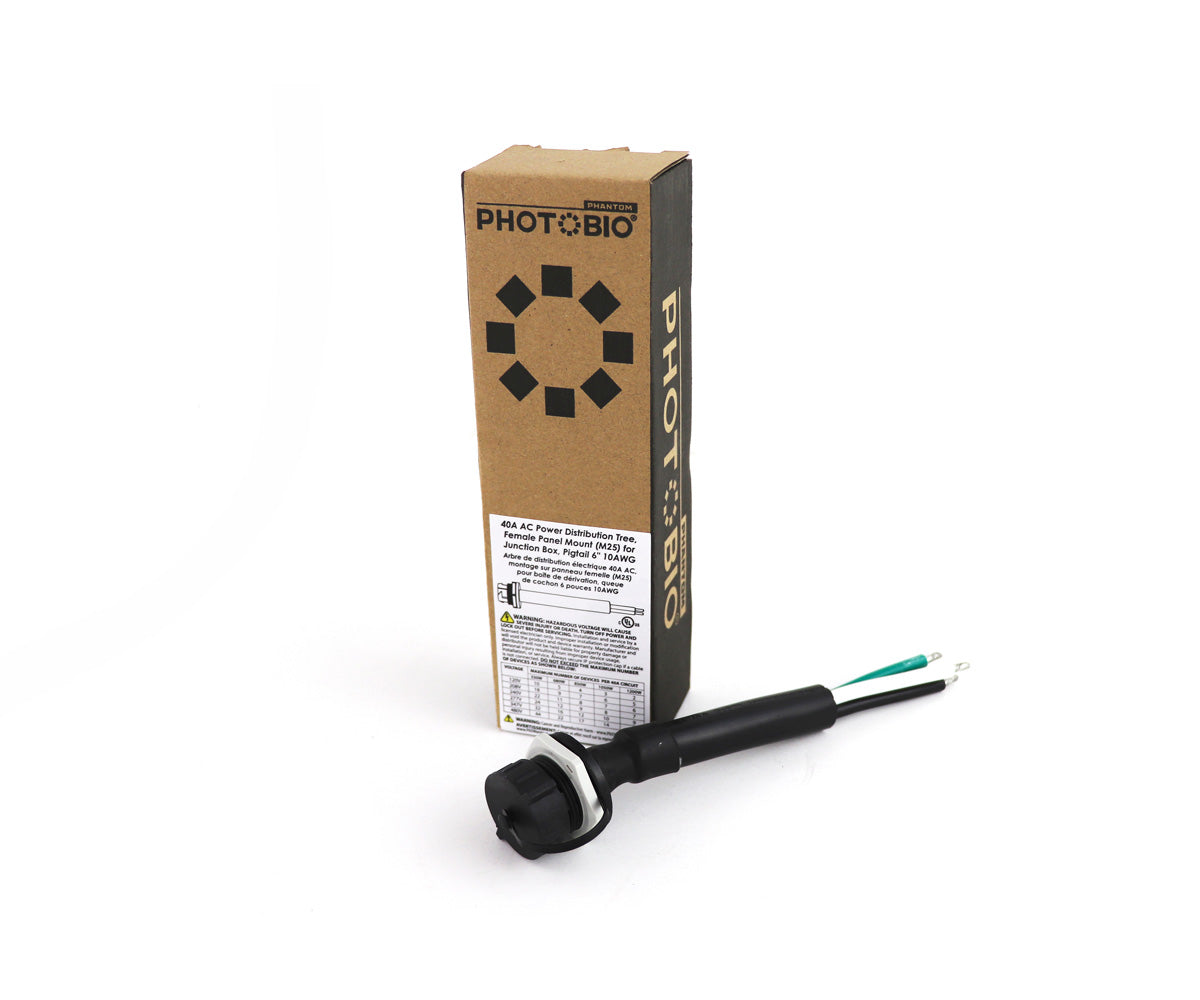

PHOTOBIO AC Female Panel mount, 40A M25, Pigtail 6" 10AWG

Smarter, Simpler, Safer, Significant Savings

The 40 AMP PHOTOBIO AC Power Distribution Tree enables multiple LED fixtures to be daisy chained from centralized 40 AMP drops.  The modular system provides significant cost savings on electrical infrastructure and labor while offering superior safety and flexibility versus traditional NEMA power plugs and outlets.

Designed to excel in rigorous Indoor Farm and Greenhouse conditions, the PHOTOBIO AC Power Distribution Tree connections are all locking IP67 rated resulting in complete dust protection and protection against temporary submersion in water. The system is designed with EMC suppression technology to mitigate electromagnetic interference, is UV resistant, designed for use up to 480V, and is UL listed.

Each 40 AMP Tree starts with the “Roots” or PHOTOBIO Panel Mount Pig Tail, which is hardwired into a ceiling mounted junction box supplied with minimum 40 AMP service by a licensed electrician working with an electrical engineer.  After the initial junction box tie in, the AC Power Distribution Tree is fully plug and play, providing fast and easy daisy chain connections. “Trunk” Power Link cables and “Trunk with Branch” Power T cables are used in combination to suit your unique needs. Hydrofarm’s grower-centric, full-service lighting design services are complimentary and ensure our customers always succeed.

Compatible with PHOTOBIO MX, CX, TX, T, and Phantom PHENO LED and PHANTOM DE 60 Series 277-400V HID fixtures.  Installation and service by a licensed electrician only in accordance with manufacturer specifications.

---

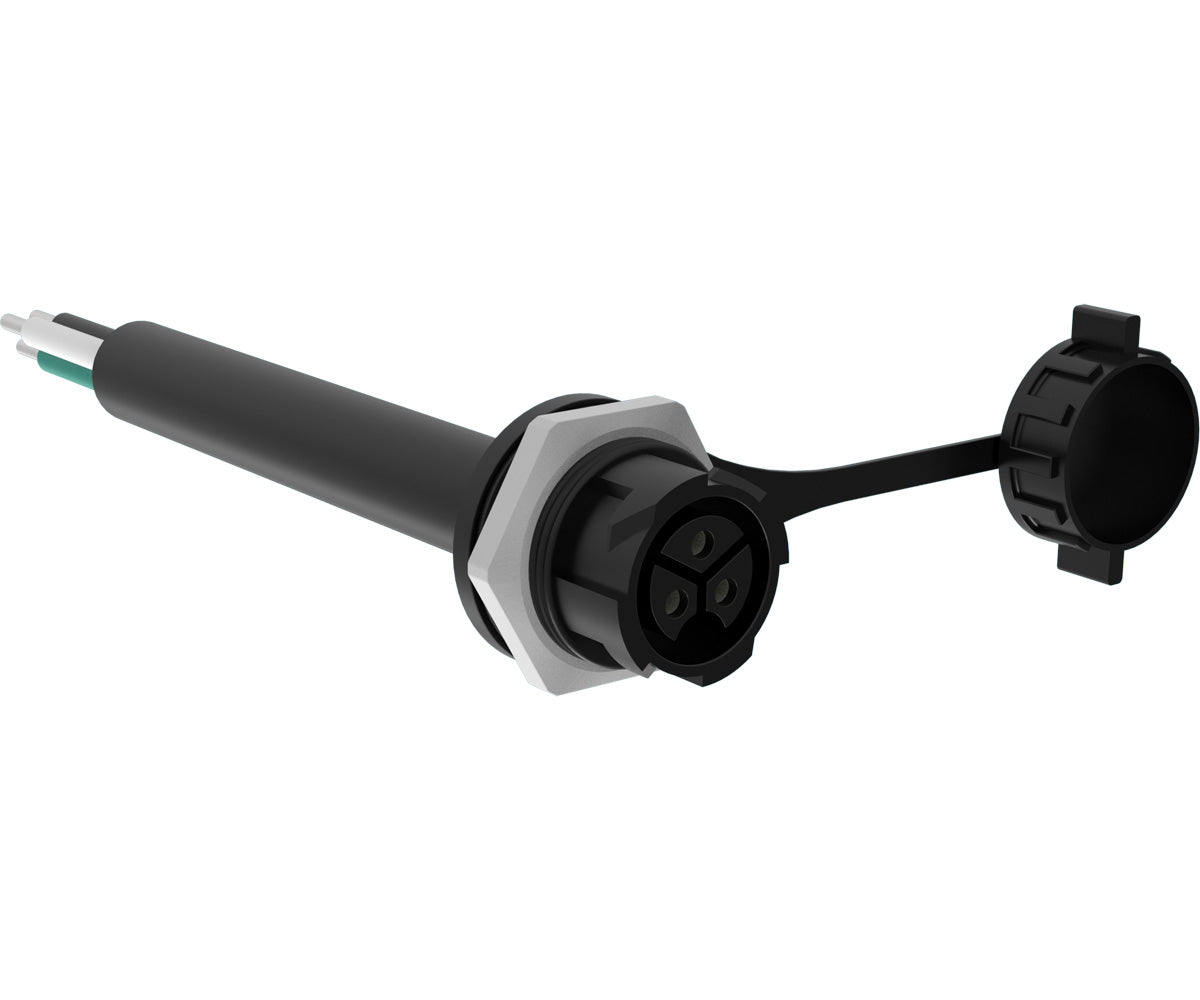

This item, the 40 AMP PHOTOBIO AC Power Panel Mount M25 Female Connector act as the “roots” and is hardwired into a ceiling mounted junction box or panel supplied with minimum 40 AMP service by a licensed electrician working with an electrical engineer.

Once installed, each 40A Female Panel Mount becomes the starting point for a PHOTOBIO AC Power Distribution Tree, providing the initial connection point to Power Link Cables (Trunk) and or Power T Cables (Trunk with Branch) depending on structural requirements.

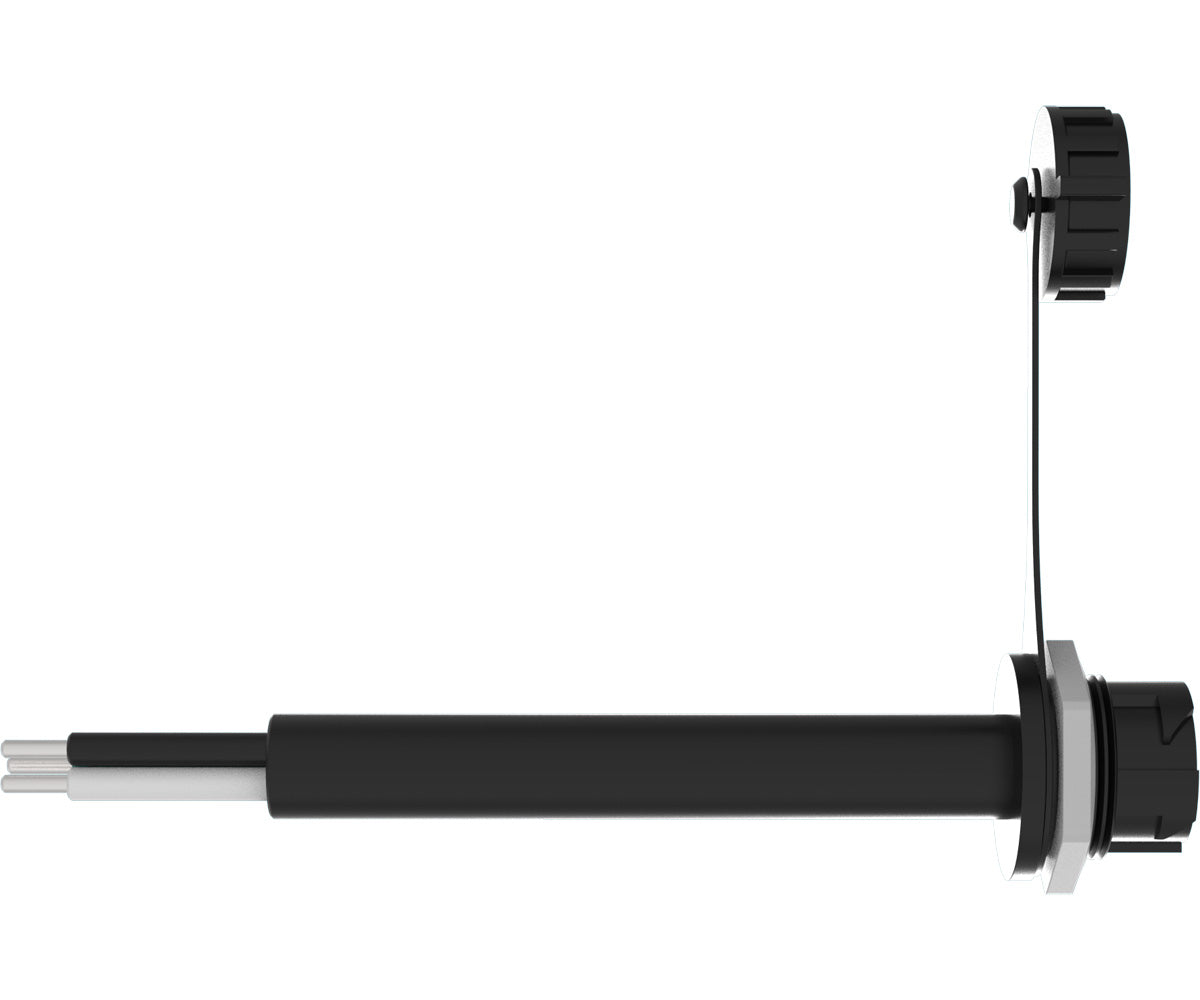

Features heavy duty 6” pre-stripped 10AWG braided flexible copper wiring with 40A capacity and convenient M25 Female locking connection rated IP67 for enhanced dust and water protection.

VOLTAGE	MAXIMUM NUMBER OF DEVICES PER 40A CIRCUIT
	330W	680W	850W	1050W	1200W
120V	10	5	4	3	2
208V	18	9	7	6	5
240V	22	11	8	7	6
277V	24	12	9	8	7
347V	32	16	12	10	9
480V	44	22	17	14	12
