• DAB ESYBOX Mini 3 Electronic Water Pressure System
1 1

DAB Pumps

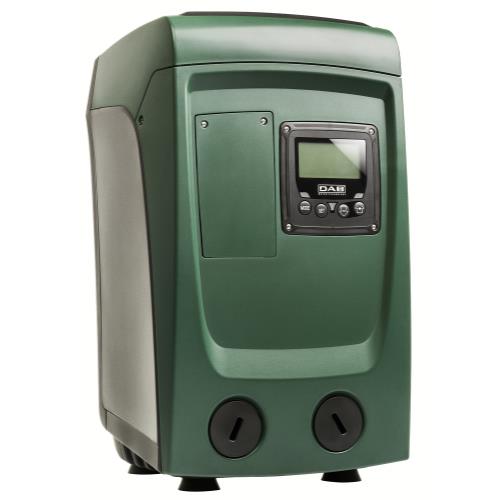

DAB ESYBOX Mini 3 Electronic Water Pressure System

DAB ESYBOX Mini 3 Electronic Water Pressure System

$1,234.95
$1,295.00 $1,234.95
Sale Sold out

Shipping Restrictions

We ship throughout the lower 48 states. Contact Us to see if specific items can be sent elsewhere.

Bulk Orders

Contact Us for Pricing on Multiple Units, Customized Freight Quotes & Commercial Discounts

Request a Quote

To Request a Quote you can go to Checkout and use the Quote Request Option (No Payment Details Necessary) or Contact Us

View full details

The DAB ESYBOX Mini 3 is a state-of-the-art water pressure booster system designed for seamless integration into residential settings. Utilizing advanced inverter technology, it ensures consistent water pressure while optimizing energy use for efficiency and comfort. The system supports up to four pump configurations, providing flexible installation options without requiring additional components.

The DAB ESYBOX Mini 3 Electronic Water Pressure System can move around 22 gallons per minute of water. It consists of a high frequency self-priming double impeller pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1/4 gallon built-in expansion vessel, and cartridge check valve.

  • Guarantees consistent water pressure
  • Ultra low noise
  • No vibrations
  • Easy to adjust
  • Equipped with a large display
  • Extemely compact size
  • Easy to install either vertically or horizontally
  • Reduced Energy Consumptions
  • Easy maintenance

ESYBOX DAB Pumps solves the problem of maintaining consistent, constant water pressure in your hydro pump system across several rooms and installations, from a distance or to an elevated area. The ESYBOX is a compact booster pump that's about 30% smaller than traditional pump and controller systems. At 45dB (decibels) its whisper quiet. ESYBOX only uses the power necessary to provide the pressure and flow needed making it highly energy-efficient and ESYBOX can be mounted horizontally or vertically depending on your needs/space requirements. If multiple ESYBOX units are in use, an integrated wireless communication system allows the units to communicate with the other pumps for easy monitoring.

Specifications for the DAB ESYBOX Mini

  • Voltage: 115 Volt
  • P1 Max: 1 HP (850 Watts)
  • Q Max: 22 gpm
  • Max Suction: 26 ft.
  • Dimensions: 17.5" x 10.5" x 9.5"
  • Maximum ambient temperature: +122°F (+50°C)
  • Maximum pressure: 108 psi (7.5 Bar)
  • Maximum setable pressure: 79 psi (5.5 Bar)
  • Motor protection rating: IPX4
  • Insulation class: F
  • Installation: Horizontal or vertical fixed position
  • Operating range: capacity up to 22 gpm (80L/min); head up to 183 ft (56 m) - (80 psi)
  • Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral
  • Liquid temperature range: from 32°F to +95°F (0°C to +35°C) for domestic use for other use: from 32°F to +104°F (0°C to +40°C)
