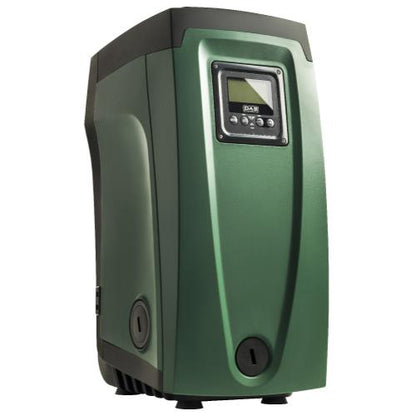

DAB ESYBOX Electronic Water Pressure System

The DAB ESYBOX is a patented booster system, unique in its category, with high performances, efficient, compact, easy and satisfying in the use both for the installer and the final user. When ESYBOX mini is the solution for water boosting in small dwellings, ESYBOX offers the same advantages in collective residential applications, such as villas or condos. Wireless technology allows to set up booster sets up to 4 pumps.

The ESYBOX can move around 32 gallons per minute of water. The features and design make the system easily adaptable to any type of installation. Horizontal or Vertical, in a ventilated room or in a recess, any setting will be perfect for making the best possible use of the ESYBOX, which ensures a reduction of at least 30% of the dimensions as compared to any other traditional system.

ESYBOX by DAB Pumps solves the problem of maintaining consistent, constant water pressure in your hydro pump system across several rooms and installations, from a distance or to an elevated area. The ESYBOX is a compact booster pump that's about 30% smaller than traditional pump and controller systems. At 45dB (decibels) its whisper quiet. ESYBOX only uses the power necessary to provide the pressure and flow needed making it highly energy-efficient and ESYBOX can be mounted horizontally or vertically depending on your needs/space requirements. If multiple ESYBOX units are in use, an integrated wireless communication system allows the units to communicate with the other pumps for easy monitoring.

Specifications for the DAB ESYBOX

• Voltage: 230 Volt
• Q Max: 32 gpm
• Max Suction: 26 ft.
• Maximum ambient temperature: +122°F (+50°C)
• Maximum pressure: 118 psi (8 bar / 800 kPa)
• Maximum setable pressure: 79 psi (5.5 Bar)
• Motor protection rating: IPX4
• Insulation class: F
• Installation: Horizontal or vertical fixed position
• Operating range: capacity up to 32 gpm (80L/min); head up to 210 ft - (80 psi)
• Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral
• Liquid temperature range: from 32°F to +95°F (0°C to +35°C) for domestic use for other use: from 32°F to +104°F (0°C to +40°C)
