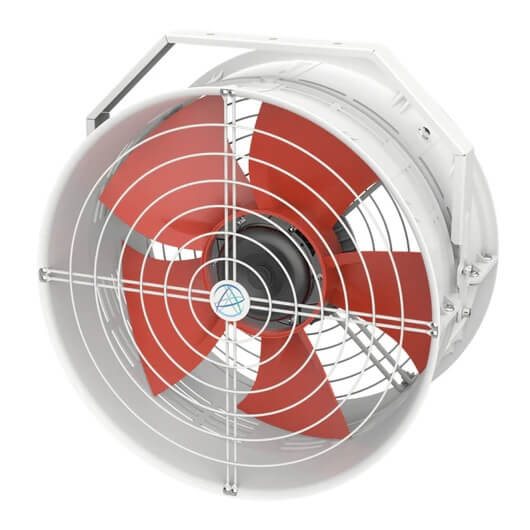

• Aero-Fan 20-Inch High Velocity Fan Pro Model, While body, 5 orange blades
1 1

TrolMaster

Aero-Fan 20 inch High Velocity Fan Pro Model

Aero-Fan 20 inch High Velocity Fan Pro Model

$647.38
$647.38
Sale Sold out

Shipping Restrictions

We ship throughout the lower 48 states. Contact Us to see if specific items can be sent elsewhere.

Bulk Orders

Contact Us for Pricing on Multiple Units, Customized Freight Quotes & Commercial Discounts

Request a Quote

To Request a Quote you can go to Checkout and use the Quote Request Option (No Payment Details Necessary) or Contact Us

View full details

Heavy Duty 20 inch High Velocity Fan with adjustable tilt

The Aero-Fan 20-Inch High Velocity Fan Pro Model (HE-20M) is a compact and efficient fan designed to improve air circulation and ventilation throughout indoor spaces. With its powerful motor, it moves a significant volume of air at high velocity, removing stale air and humidity. Its versatile design allows easy installation in various duct systems, ensuring a fresh and comfortable environment.

  • 200-277VAC Automatic Voltage Sensing
  • Unparalleled Control Functionality when paired with TrolMaster Controllers
  • Applicable without Variable Speed Driver

Specifications

  • Operating Voltage: 200-277VAC
  • Rated Current: 3.0A Max
  • Rated input power: 610W Max
  • Number of Blades: 5
  • Max. air flow: 4980cfm
  • Max. static air pressure: 150Pa
  • Rotating Direction: CCW
  • Operating temperature: -4~140°F
  • Mean Time To Failure (MTBF): 50000H (25°C)
  • IP Rating: IP54
  • Dimensions: 12.20" x 22.04" x 23.38"
  • Net Weight: 29.76 lbs

Package Contents:

  • 20" High Velocity Fan Pro Model
  • ECS-7 Cable



Shipping is a Flat $40 for all ThinkGrow/TrolMaster Orders
